Modular Polycentric EBS Knee Joint

By ottobock

The EBS modular knee features a hydraulic system that controls the behavior of the knee during swing phase. The dampening values of the hydraulic system allows patients to initiate swing phase and use a wide range of walking speeds.Offers relief for the back and residual limb due to controlled knee flexionFlexion and extension dampening can be individually adaptedKnee is easily adjustable

The 3R80 Modular Knee Joint with Rotary Hydraulic features rotary hydraulics that control stance and swing phase to prevent involuntary flexion of the knee joint. The flexion and extension resistance can be adjusted easily and independently.Manual lockWaterproofDurable constructionIncludes a 710H10=2x3 Adjustment wrench and 513D59=1.3x8.8x86 Compression spring

The 3R93 Modular Brake Knee features a load-dependent brake mechanism and an optional locking function. It has an integrated, adjustable extension assist springs that control the swing phase.Braking and stance flexion action can be easily adjustedUser pulls on a cable to release the jointNot suitable for bilateral transfemoral amputeesIncludes 710H10=2X3 Adjustment Wrench and 4F18=N Lock Slide, Complete

The 3R92 features technology with a load-dependent brake mechanism that engages when the heel is loaded stabilizing the prosthesis and achieving a high degree of safety during the entire stance phase. The braking mechanism releases automatically when the forefoot is loaded allowing the swing phase to be initiated easily and harmoniously.Progressive dual-chamber pneumaticLower joint section is formed as a pneumatic cylinder

The 3R41 Modular Knee Joint features synthetic technology that secures the joint at full extension and the user can hear and feel the lock latch engage. The joint can be unlocked using the pull cable or by pressing the lock latch.Moisture resistantLightweightHigh need for safetyFront plastic flap prevents pinching the fingers in the joint gap

The Comfort-Brake Knee features an integrated extension assist that can be regulated by adjusting the tension of the spring combination. The technology with a load-dependent brake mechanism engages when the heel is loaded and stabilizes the prosthesis to achieve a high degree of safety.Minimizes hip hikeBraking mechanism releases automatically when the forefoot is loadedSwing phase can be initiated easily and harmoniously

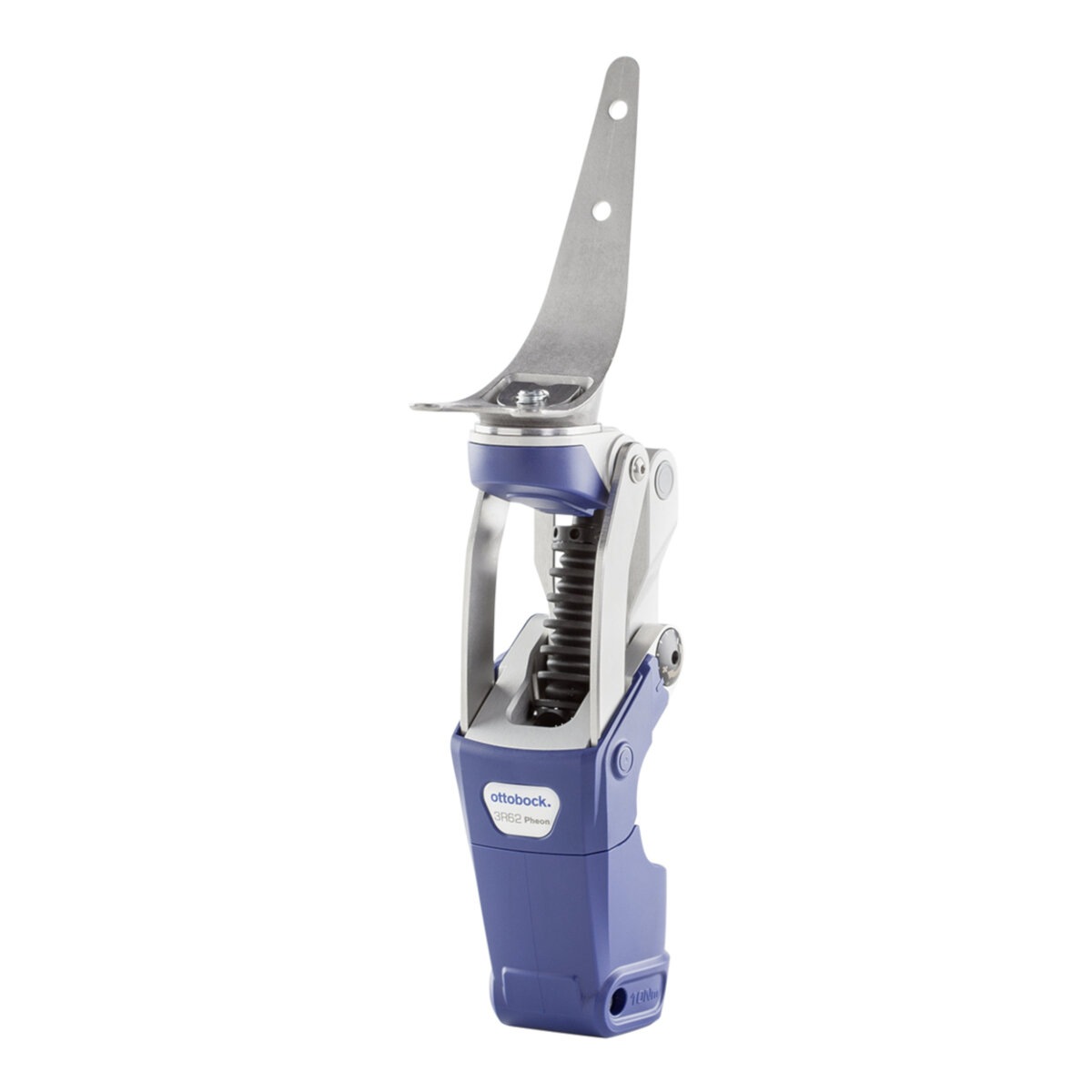

The Pheon polycentric prosthetic knee joint features mechanical swing phase control designed for patients with low mobility. It provides the corresponding functionality for swing phase control and stance phase control. The integrated optional lock can be activated or deactivated by the prosthetist.Permits biometrically important, controlled and stabilizing flexion under load up to 10 DegreesSmooth-running needle roller bearing technologyDesign that protects the cosmetic cover

The EBS-PRO modular knee features a hydraulic system that controls the behavior of the knee during swing phase. The dampening values of the hydraulic system allows patients to initiate swing phase and use a wide range of walking speeds.3R60-PRO is smaller and lighter than the 3R60Offers relief for the back and residual limb due to controlled knee flexionKnee is easily adjustableFlexion and extension dampening can be individually adapted to fit the user

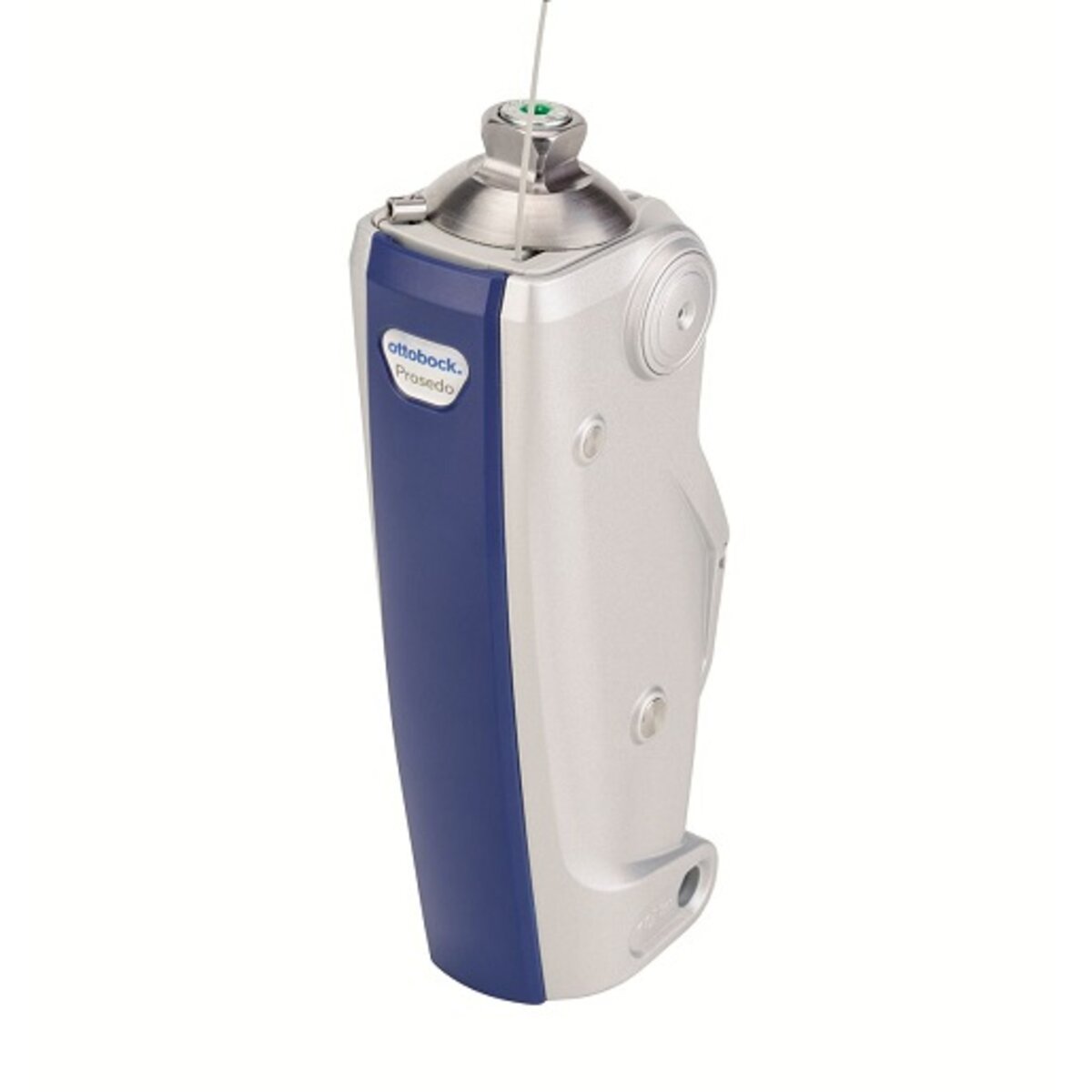

The Prosedo modular knee joint features a hydraulic flexion resistant sitting assist that can be adjusted based on patient weight and needs. After disengaging the lock, progressive flexion resistance will support the patient while lowering into a seated position providing balance and reduce strain on the patient’s sound side.Manual lock knee with unique release functionLightweightOptional disengagement of the lock via lock release button
