Pheon
| Part # | Description |
|---|
Product Information

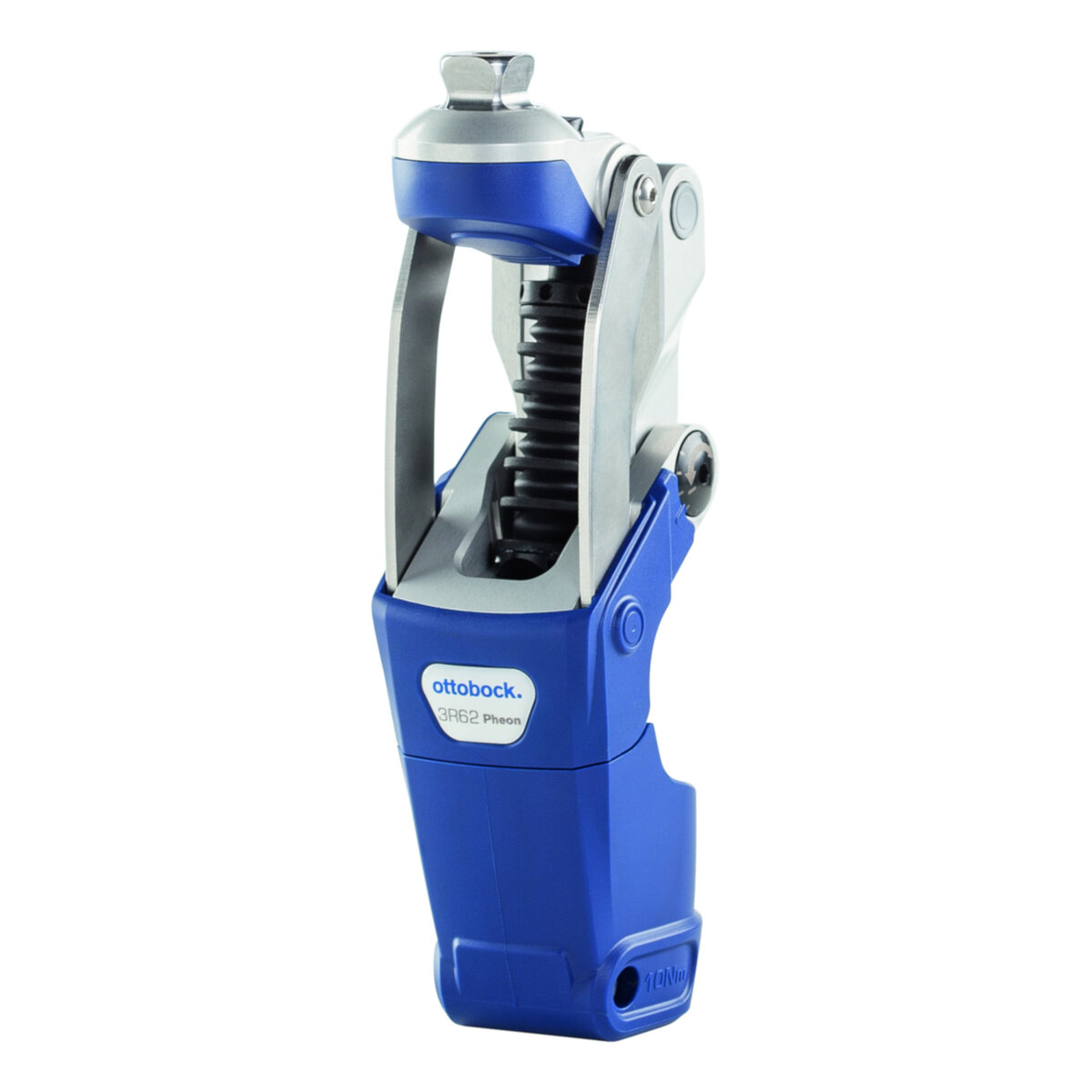

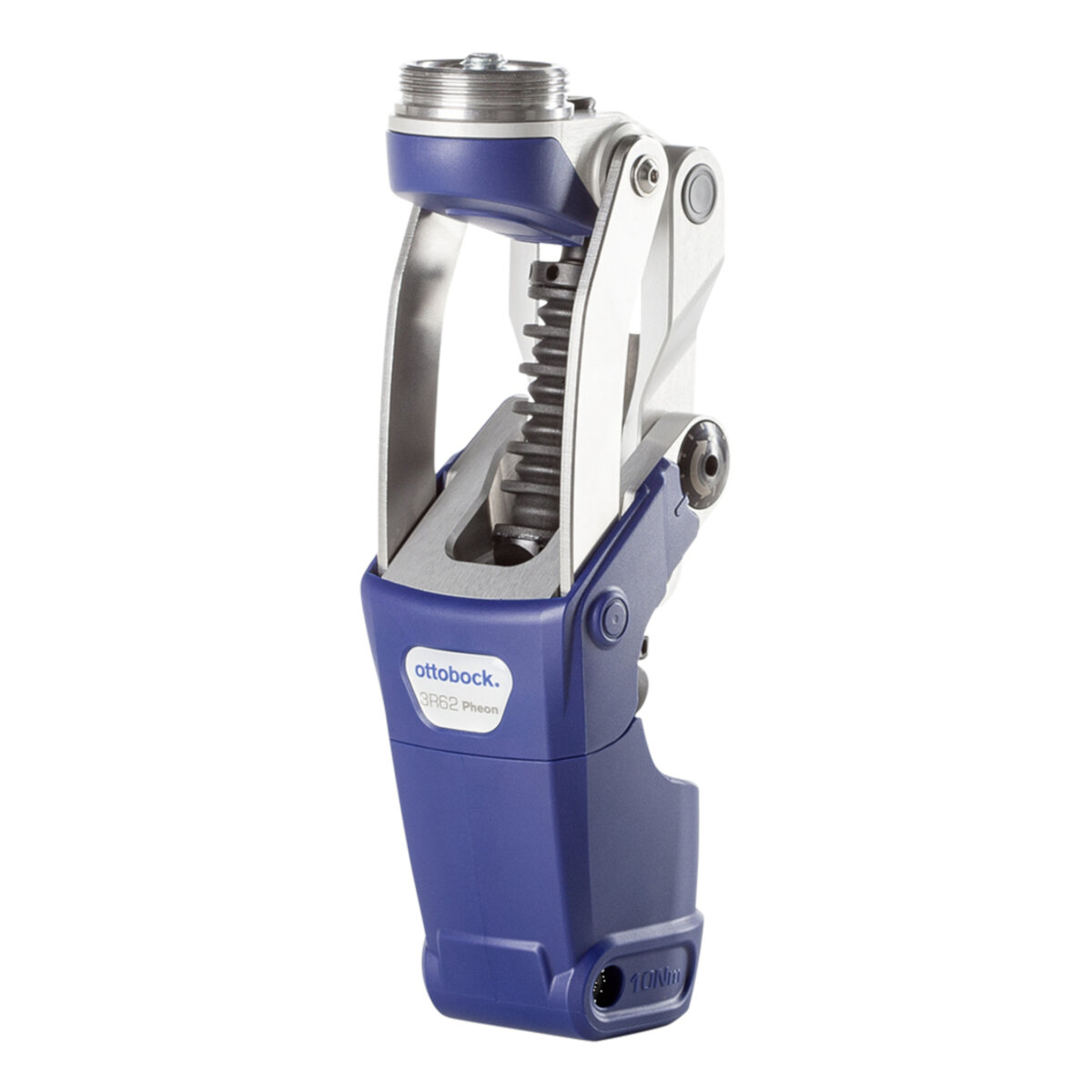

The Pheon polycentric prosthetic knee joint features mechanical swing phase control designed for patients with low mobility. It provides the corresponding functionality for swing phase control and stance phase control. The integrated optional lock can be activated or deactivated by the prosthetist.
- Permits biometrically important, controlled and stabilizing flexion under load up to 10 Degrees
- Smooth-running needle roller bearing technology
- Design that protects the cosmetic cover
Specifications
- Activity Level: K2
- Knee Design Type: 4-Bar Linkage, Friction Swing Phase Control
- Axis: Polycentric
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 850-865
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 155 Degrees
- Proximal Connection: Refer to chart below
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
Frequently Bought Together
Rotation Adapter with Threaded Top
By ottobockThe rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal thread.
3S107 Foam Cover, Pre-Shaped
By ottobockFeatures a pre-shaped design and stepped center hole for modular transfemoral prostheses.For knee joints: 3R106, 3R106=ST, 3R106=HD, 3R60, 3R60=ST, 3R60=HD, 3R60-PRO, 3R60-PRO=ST, 3R60-PRO=HD, 3R72, 3R80, 3R90, 3R92 (also for 3R60=KD, 3R106=KD).
Rotation Adapter with Pyramid
By ottobockThe rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal pyramid adapter.
