Tube Clamp Adapter Aluminum
| Part # | Description |
|---|
Product Information

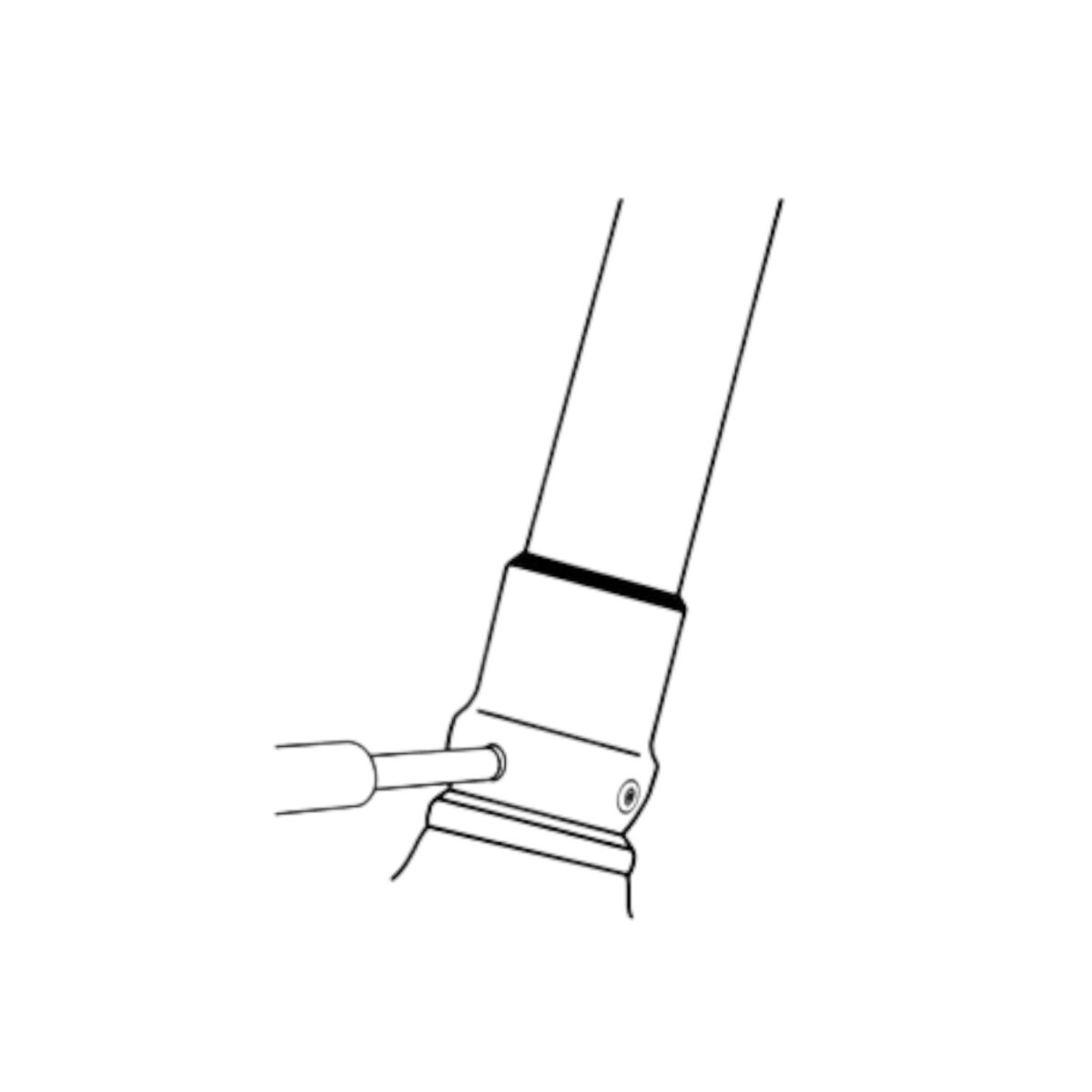

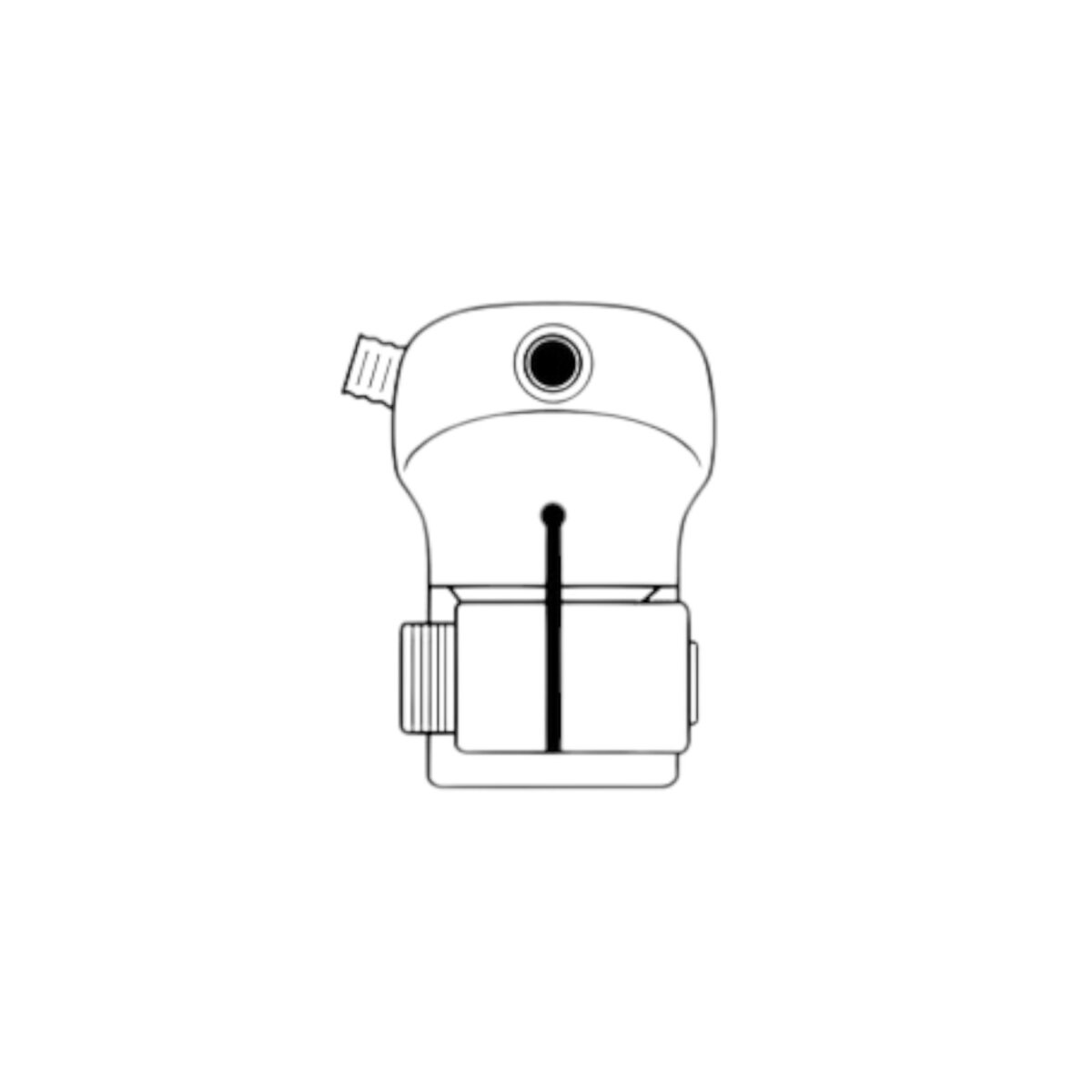

Constructed from high-strength aluminum, this tube adapter supports patients weighing up to 80 kg. With a 30 mm diameter, it is designed to be used with screw adapter tubes for adjusting modular leg prostheses. This setup allows for modifications in angle and translation in the sagittal and anterior planes, as well as adjustments for internal and external rotation.
Specifications
- Material: Aluminum, Stainless Steel
- Weight Limit: 176lbs (80kg)
- Build Height (mm): 500
- Assembly Weight (g): 68
- Torque (Nm): 13 (M6 x 22 mm screw), 15 (M8 x 14 mm oppressors)
- Warranty: 1 year
Sold each.
