Used to connect the electrodes in myoelectric systems to a:9E169 Coaxial Plug13E205 MyoRotronic9E369/9E370 4-in -1 LS Controller or 9E420 7-in-1 Controller13E190 Distributor or 10S7 Electric Wrist Rotator

The Electric Wrist Rotator provides electrical rotation that can be operated with all ottbock System Electric Hands that are equipped with the Quick Disconnect Wrist.Required for pronation and supination of the handIf muscular tension is not sufficient for operation with the 13E205 MyoRotonic, the 10S17 can be controlled by the 9X14 Harness Pull Switch, the 9X18 Traction Switch, or the 9X25 Rocker SwitchIncludes:11S4 Lock Ring11S61 Wrist Drive with Coaxial Plug11S25 Lock Ring9E85 Protective Cap9E363 Drive Unit9E365 Protection Plug

For connecting the two electrodes and battery.

Includes: Coupling Piece 11S4 Lock Ring

Electrode cable connection with IDC termination, with 13E206 Electrode Accessories, without electrode cable. Creates an airtight seal between the inner socket and outer socket when embedded into a mounting suspension of elastic material. The Suction Socket Electrode also prevents sweat from penetrating between the outer and inner socket, preventing damage to the electrical and mechanical components caused by corrosion.The Suction Socket Electrode can not only be used for standard fittings, but is also suitable for application in suction sockets. Combining the suction socket electrode with a 12V10 Tube Valve for a suction socket creates a vacuum effect in the socket, ensuring optimal linkage between the residual limb and the socket.Shielding and filtering technologies largely protect the 13E202 Suction Socket Electrode against high frequency interference caused by cell phones, walkie-talkies, computers or anti-theft systems in shopping centers so that the correct function of the myoelectrically controlled prosthesis is not affected. The electrode contacts are made from pure titanium and are suitable for people with allergies.Includes:(1) 13E200 electrode(1) 13E80 adjustment tool(1) 13E191 casting template for inner socket(1) 13E192 lamination template(2) 507S15 lamination plate with bore(1) 13E201 electrode accessories for vacuum-formed inner sockets(2) 503F3 socket screw with Allen headThe following products are also required:13E129=* electrode cable

The Analog Adapter allows for the analogue Ottobock hand systems to be controlled in combination with the DynamicArm. The digital signal of the DynamicArm is converted to an analogue signal by the adapter.

The Linear Transducer is for assembly between the outer and inner prosthetic socket. Its Linear Control Element allows continuous, proportional control of prosthesis components using harnesses, while the 4-step Control Element allows for proportional control of prosthetic components at four different speed levels using harnesses. In combination with the 12K100 DynamicArm®, it provides the possibility to selectively switch between the different system components.

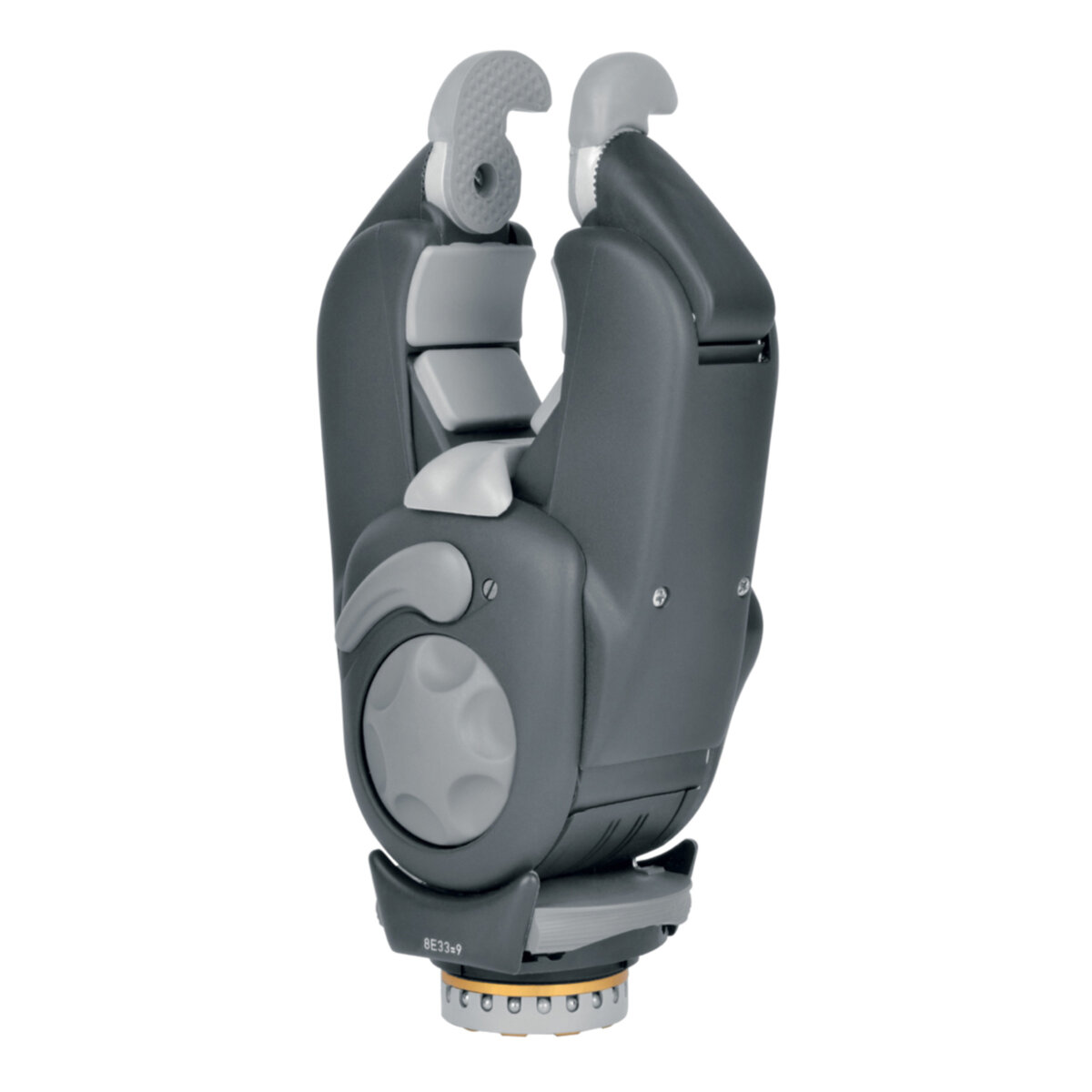

The System Electric Greifer DMC VariPlus with Quick Disconnect Wrist is suitable for all amputation levels, except wrist disarticulation.The Greifer features integrated flexion and extension with said wrist to allow users to easily switch from wearing a quick-disconnect hand back to their Greifer in seconds.Giving users a powerful grip that enables excellent precision, the System Electric Greifer supports both detailed tasks as well as the handling of heavy objects. For those who work with their hands as well as for enthusiastic hobbyists, the broad range of gripping features makes the Greifer work well with bebionic, SensorHand Speed, or MyoHand VariPlus Speed.The wrist joint can be flexed 45° in either direction, minimizing harmful compensating movements and providing the user more precise controlDifferent gripping tips (hook, aluminum paddles, or standard rubber-coated) allow further customization for special tasksDesigned for power, precision, and speedLED Flashlight with 3 Dimming Levels: Illumination of the work area, e.g. when gripping objects in drawersNew Darker Color: Provides a modern look while helping users to keep their device cleaner
