Product Information

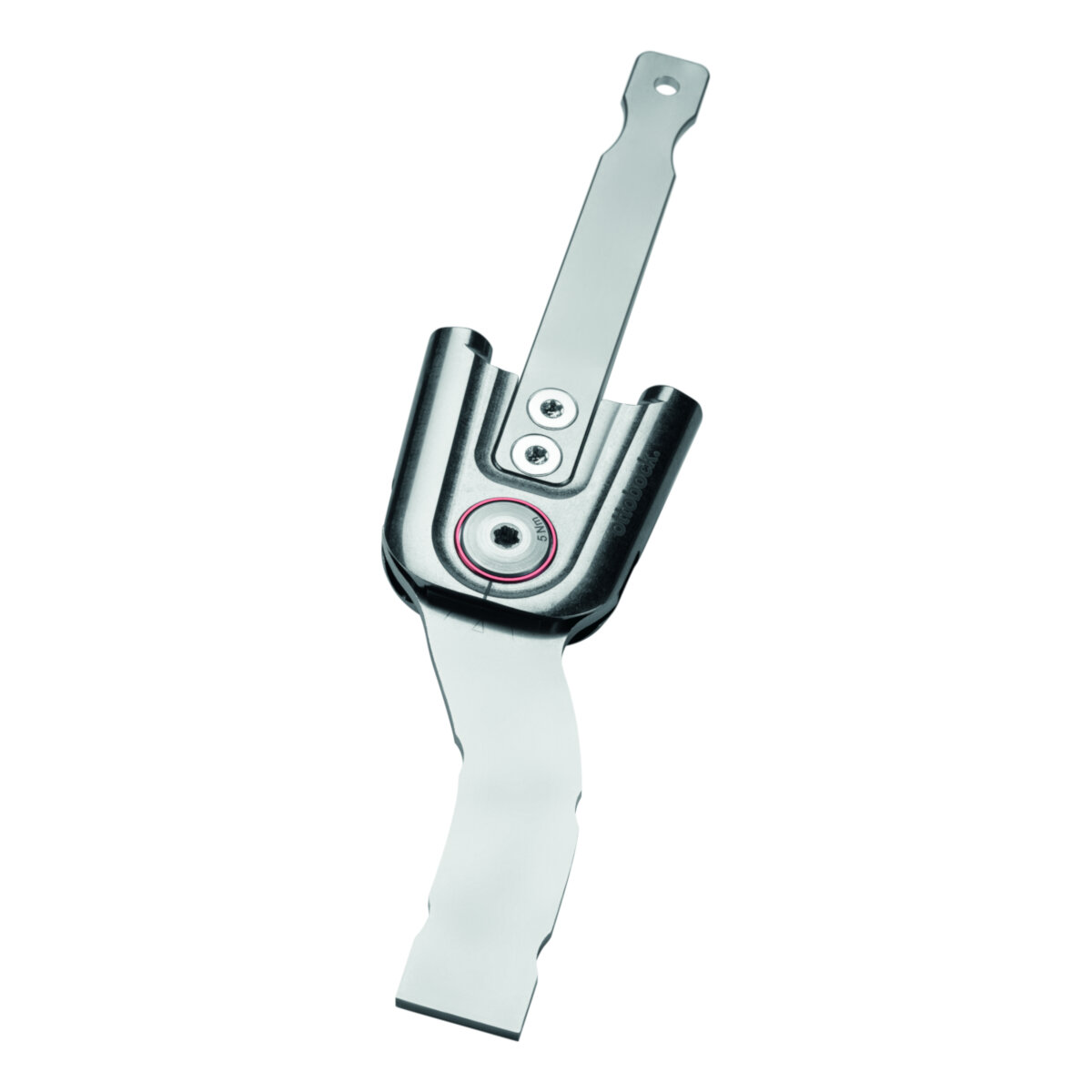

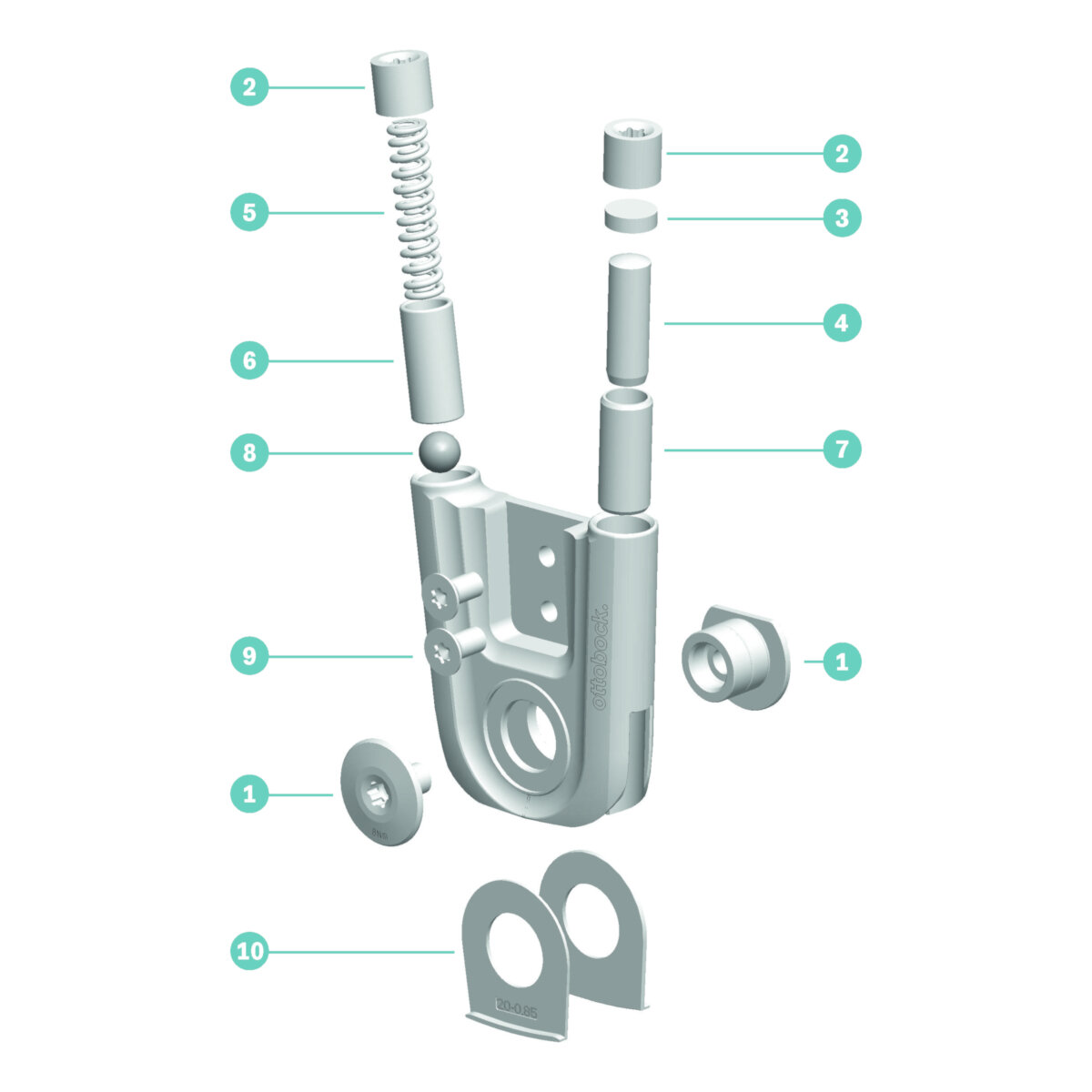

The 17LA3N unilateral ankle joint is a multifunction system ankle joint with a foot-lifting effect. Various combination possibilities allow it to be quickly adjusted to the individual user's needs at any time. KAFO/ AFO ankle joint with dorsi extension and plantar flexion adjustable with pins, springs, or a combination of both.
Features- Available in Stainless Steel or Titanium
- Weight classification permits unilateral use for a patient up to 220 lbs (100 kg), 330 lbs (160 kg) for bilateral.
- Small, light and inconspicuous – truly versatile.
- Foot Stirrup (17LF3N or 17LF31N) sold as accessories below
- Upright Lamination Bar (17LS3) sold as accessories below
- Lamination Dummy (17LD1N) sold as accessories below
- Extenstion Bar for unilateral fabrication (17LV3) sold as accessories below
Considerations
- When using the product unilaterally, the next higher size must be used in cases where there is flexion contracture in the knee or hip greater than 10°; or distinct torsion or valgus/varus instabilities; or increased physical activity.
- For tubercle seat or valgus/varus malpositions greater than 10°, the product must be fitted bilaterally.

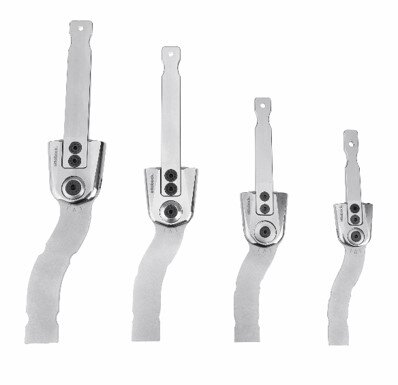

| Product | Unilateral Use lbs (kg) | Bilateral Use lbs (kg) | Material |
|---|---|---|---|
| 17LA3N=12 | 44 (20)( | 88 (40)( | Stainless |
| 17LA3N=12-T | 44 (20)( | 88 (40)( | Titanium |
| 17LA3N=14 | 110 (50)( | 176 (80)( | Stainless |
| 17LA3N=14-T | 110 (50)( | 176 (80)( | Titanium |
| 17LA3N=16 | 187 (85)( | 264.5 (120)( | Stainless |
| 17LA3N=16-T | 187 (85)( | 264.5 (120)( | Titanium |
| 17LA3N=20 | 242.5 (110)( | 352.5 (160)( | Stainless |
| 17LA3N=20-T | 242.5 (110)( | 352.5 (160)( | Titanium |
Specifications
Sold each.
