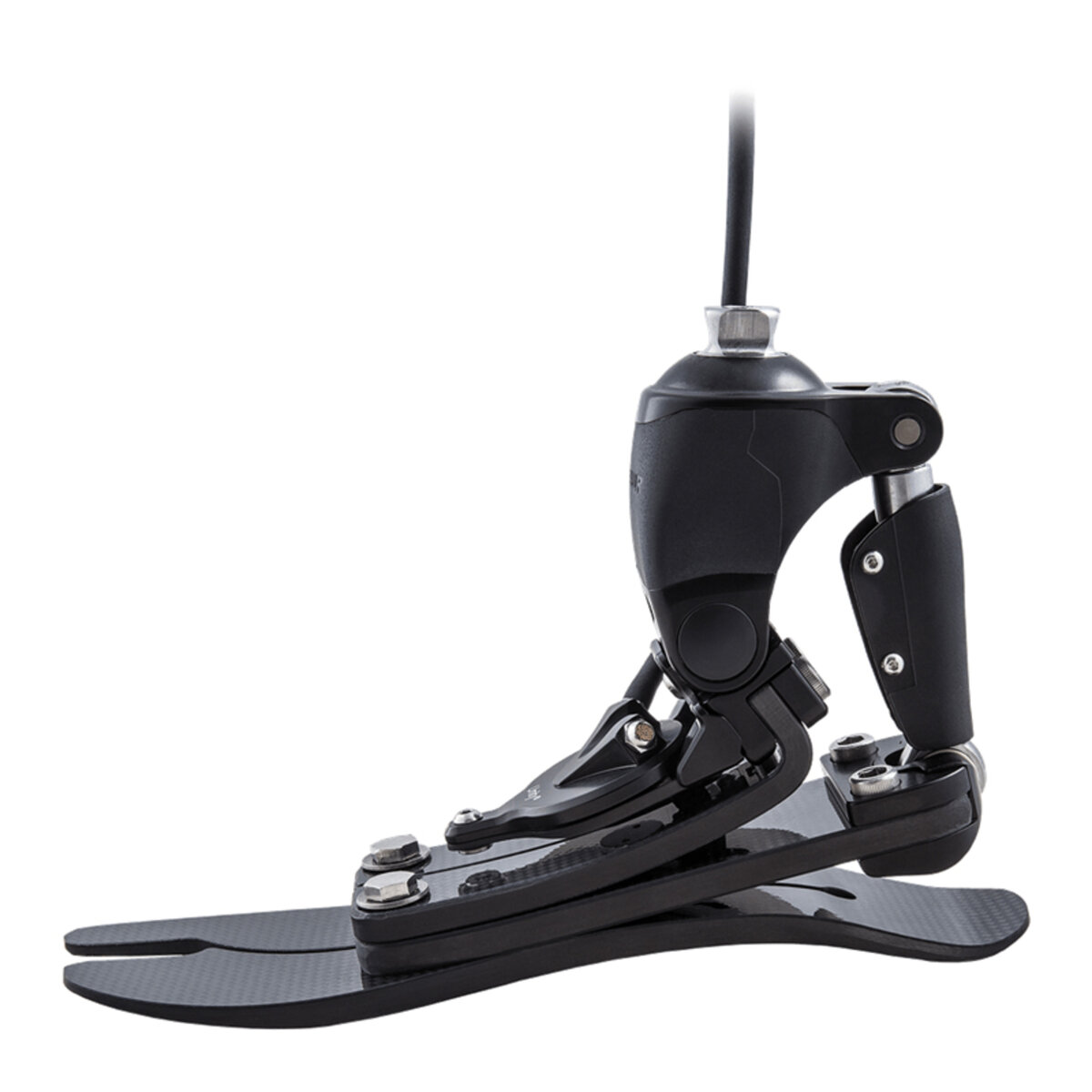

Pro-Flex® Pivot with Unity®
Quick Links
| Part # | Description |
|---|
Product Information
The Pro-Flex® Pivot with Unity® provides patients with a mechanically-powered push off. While delivering 27° of ankle motion and significantly greater ankle power than a conventional carbon fiber foot, the Pro-Flex® Pivot has been created specifically to enhance protection of the sound side. By mimicking regular biomechanics, the foot offers a 13% load reduction on the contralateral limb. The Unity® vacuum provides secure suspension while stabilizing volume fluctuations and maintaining a comfortable fit throughout the day without the constraint of an external sleeve. The innovative design of the Pro-Flex® Pivot with Unity® helps generate increased toe-off energy and a fluid, natural progression from heel strike to toe-off.
- 95% increase in peak ankle power for energy return
- 82% increase in range of ankle motion for flexibility
- 3-blade design with full length toe lever and more anatomical split toe
- Innovative pivot mechanism
- 19% reduction in sound side peak external varus movement
- Lightweight foot cover with grippy sole for increased stability
- Weatherproof
- Easy to clean
- Spectra sock included
The Ossur® Unity™ Sleeveless Vacuum System requires:
- Unity™ pump module (included)
- Pro-Flex® foot and shell (included)
- Unity™ Valve Kit (purchased separately, see Accessories)
- Iceross® Seal-In® Liner (optional)
- Unity™ pump module warranty 36 months from invoice date
Specifications
- Foot Type: Specialty – Mechanically Assisted
- Material Composition: Carbon Composite
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3
- Foot Shell: Included
- Foot Shell Color: Beige, Brown
- Sandal Toe: Yes
- Waterproof: No
- Split Keel: Yes
- Adjustable Heel: No
- Weight Rating: 99-275lbs (45-125kg)
- Stiffness Categories: 1-7
- Sizes (cm): 22-30
- Product Weight (Size 27, Cat 5) (g): 995 (with Foot Cover, Pump, Socket Valve and Tube)
- Build Height: 5.9in (149mm), 6.1in (155mm), 6.3in (160mm)
- Heel Height: 3/8in (10mm)
- Connector: Male Pyramid
- Trial Period: N/A
- Warranty: 36 months from ship date
Non-discount item.
Demo units are available upon request. Please contact your Account Manager to coordinate.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
