Modular Hip - Free Motion, Titanium
Quick Links
| Part # | Description |
|---|
Product Information
The 7E7 hip joint has continuously adjustable abduction, adduction, flexion, extension, and rotation.
- Extension assist limits range of motion
- Low build height minimizes pelvic tilt
Specifications
Specifications:
Warranty: 24 months from delivery dateDistal Connection: Tube ClampFlexion Angle: 130 DegreesMaximum User Weight: 220lbs (100kg)Product Weight (g): 875Build Height (mm): 95Axis: Single AxisActivity Level: K2, K3Material: Titanium
Frequently Bought Together
Loctite® 601
By ottobockUsed to lock threaded studs. It can be activated and loosened by applying heat.
Finishing Kit for Modular Hip Prosthesis
By ottobockThe finishing kit is used to secure the foam connection plate to the pelvic socket and is a functional component of Ottobock's modular hip joints.Includes:(2) Connecting straps with ring(2) Distal anchor rings(2) Wedges(1) ThermoLyn Trolene strip(1) pair nylon cosmetic stockings, skin color, size 3
Special Lubricant - 633G6
By ottobockCan be exposed to continuous temperatures ranging from -13°F to 230°F, hot or cold water, diluted alkalis and acids. It can be used with material combinations of metal/plastic, leather/plastic, or plastic/plastic.
RSku
2R30 Light Metal Thigh Tube
By ottobockThe 2R30 Tube is used as a connection between two 4R56 Tube Clamp Adapters. The 4R56 Tube Clamp Adapters are specifically designed for an adjustable connection between the pyramid adapter of the prosthetic hip joint and the pyramid adapter of the prosthetic knee joint or the rotator.
Finishing Kit for Modular Hip Prosthesis
By ottobockThe finishing kit is used to secure the foam connection plate to the pelvic socket and is a functional component of Ottobock's modular hip joints.Includes:(2) Connecting straps with ring(2) Distal anchor rings(2) Wedges(1) ThermoLyn Trolene strip(1) pair nylon cosmetic stockings, skin color, size 3
Special Lubricant - 633G6
By ottobockCan be exposed to continuous temperatures ranging from -13°F to 230°F, hot or cold water, diluted alkalis and acids. It can be used with material combinations of metal/plastic, leather/plastic, or plastic/plastic.
Loctite® 601
By ottobockUsed to lock threaded studs. It can be activated and loosened by applying heat.
Spare Parts Pack for 7E7

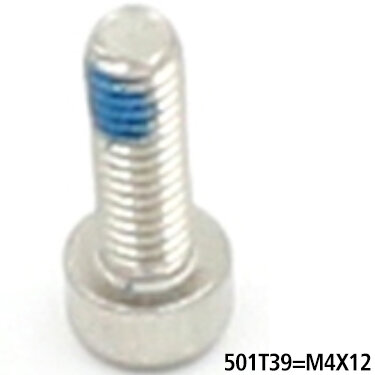

By ottobockIncludes: (1) 7Z50=H Tappet (1) 7Z51 Guide Bushing (1) 513D36 Extension Assist Spring (1) 4Z30 Safety Plate (1) 501S27=M4×5 Oval Countersunk Head Screw (1) 7Z55 Stop (2) 501F9=M8×30 Pan Head Screws (1) 501T39=M4x12 Cap Screw (1) 501T39=M4x12 Cap Screw (1) 501Z2=M5×30 Cap Screw (1) 7Z60 Lock Pin
