63mm Adult Ball Bearing Safety Lock with Guide Grooves
63mm Adult Ball Bearing Safety Lock with Guide Grooves
- Select option
- 1/4-20
- M10
- Without Pin
- Select option
- Without Pin
- 25 mm (1 in)
- 32 mm (1.3 in)
- 44.5 mm (1.75 in)
- 51 mm (2 in)
- 63.5 mm (2.5 in)
- 3.8 cm (1.5 in)
- Select option

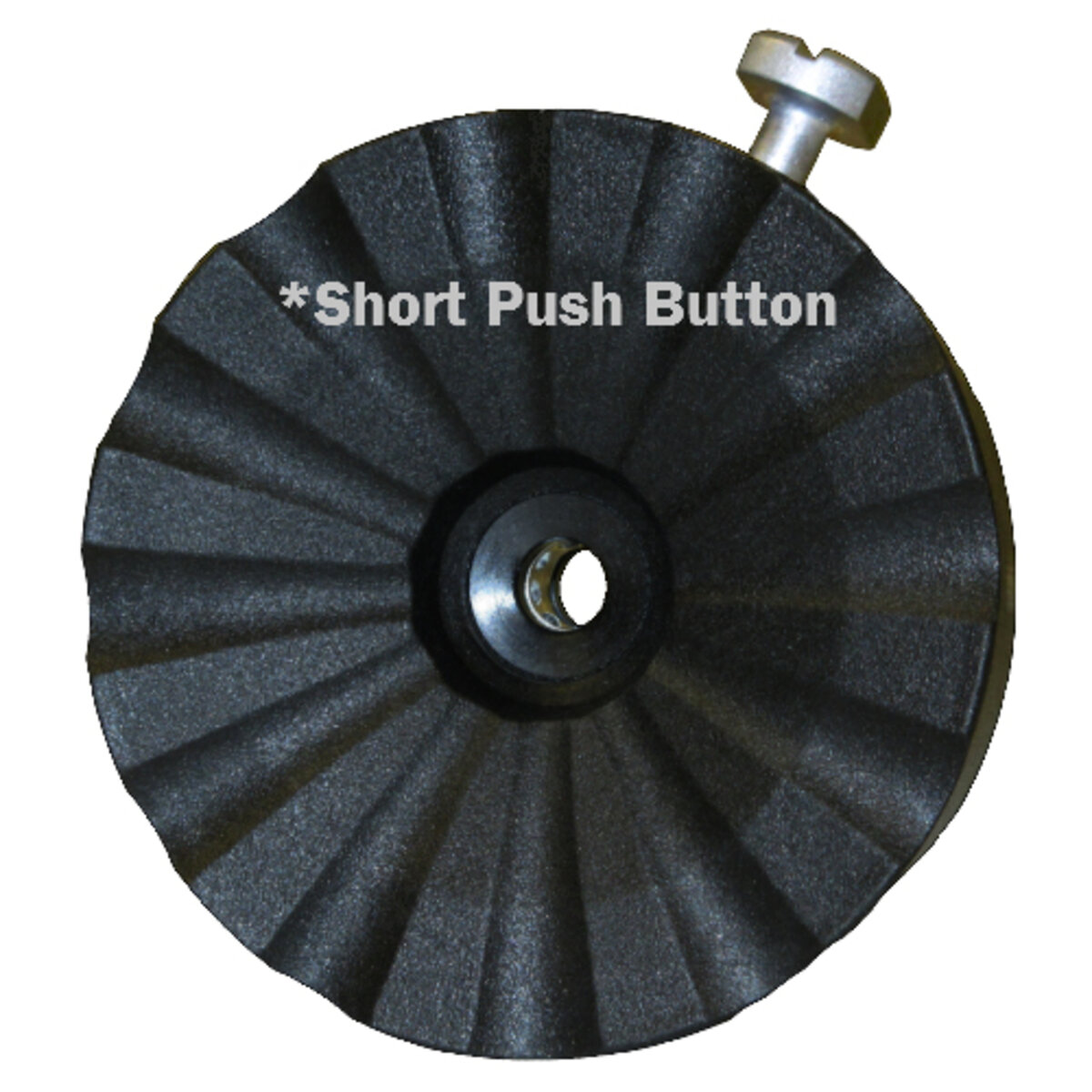

- Push Button Short
- No Push Button

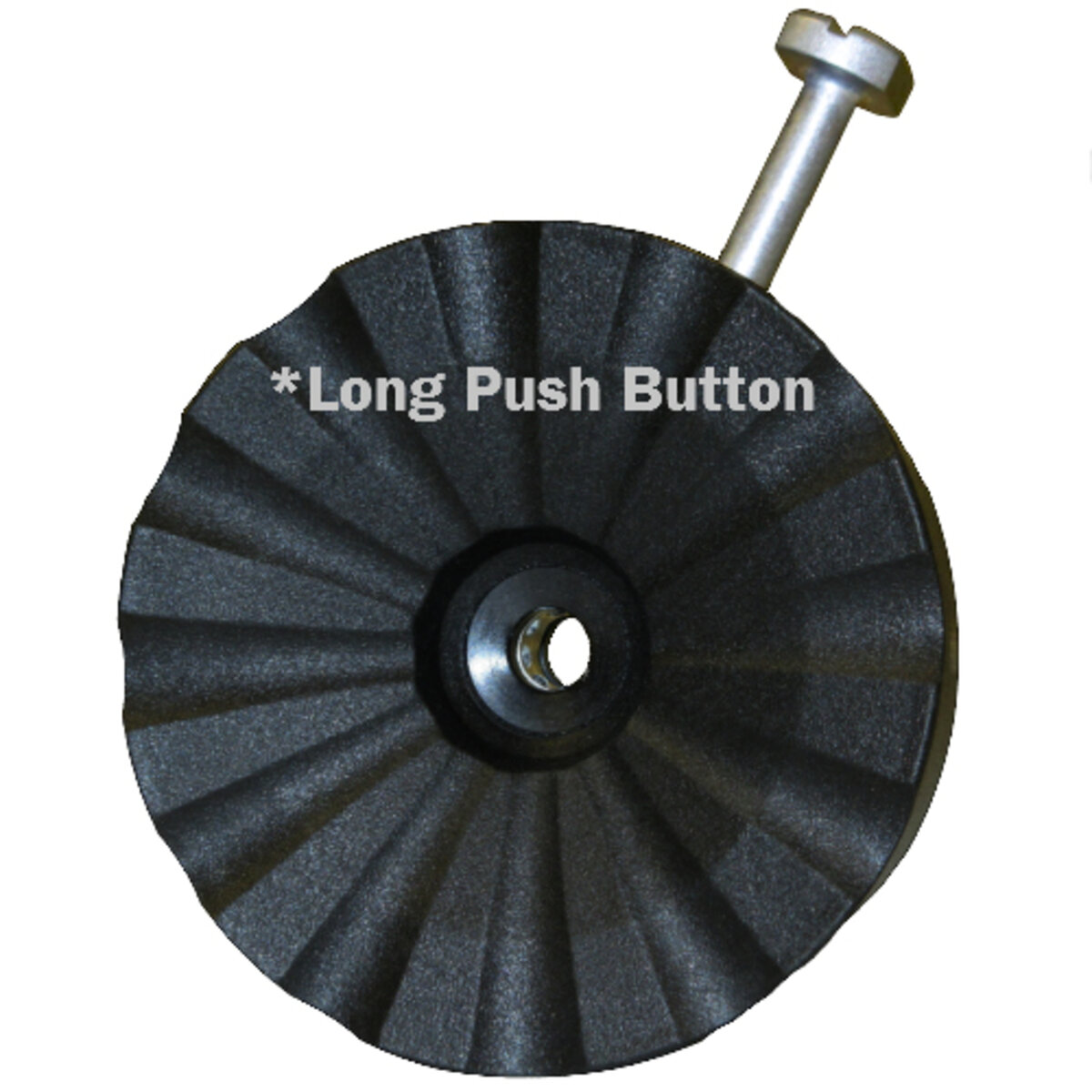

- Push Button Long
Product number:
BDSG-63-B1.00-M10
| Part # | Description |
|---|
Product Information
The Ball Bearing Safety Lock with Guide Grooves is recommended for active amputees. Rotating the push button 90 degrees locks it into position which helps prevent accidental disengagement.
Includes:
- (2) Plunger pins of choice, with o-rings
- (4) M6x25 flat head cap screws
- (1) 0.017 fl oz. tube of Loctite®
Specifications
- Lock Type: Shuttle
- Fabrication Technique: Lamination, Thermoforming
- Housing Material: N/A
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K1-K3
- Weight Limit: 350lbs (159kg)
- Product Weight (g): 73
- Build Height (mm): 25
- Distal Attachment: 4-Hole
- Warranty: 12 months from purchase date
Sold each.
This is a non-discount item.
