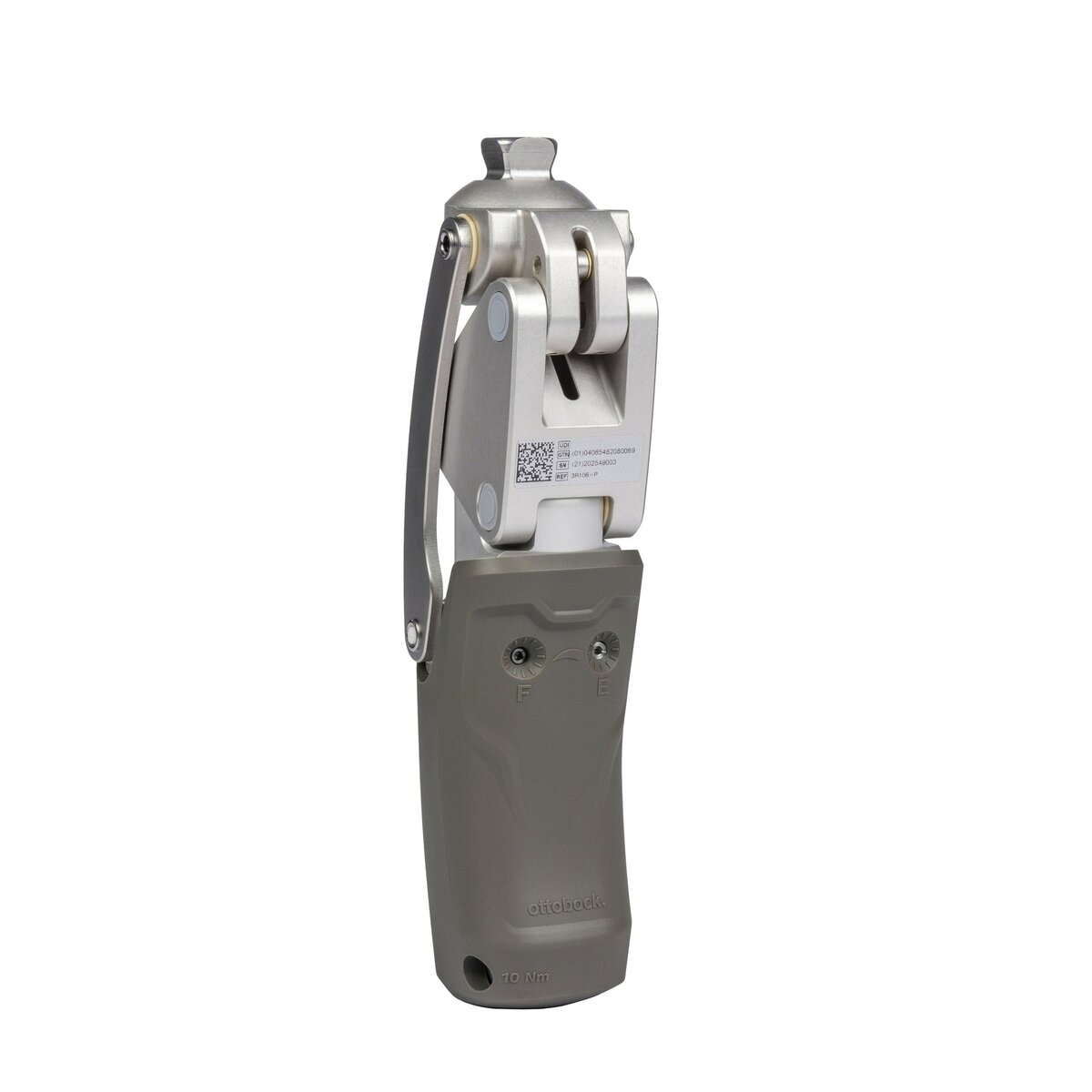

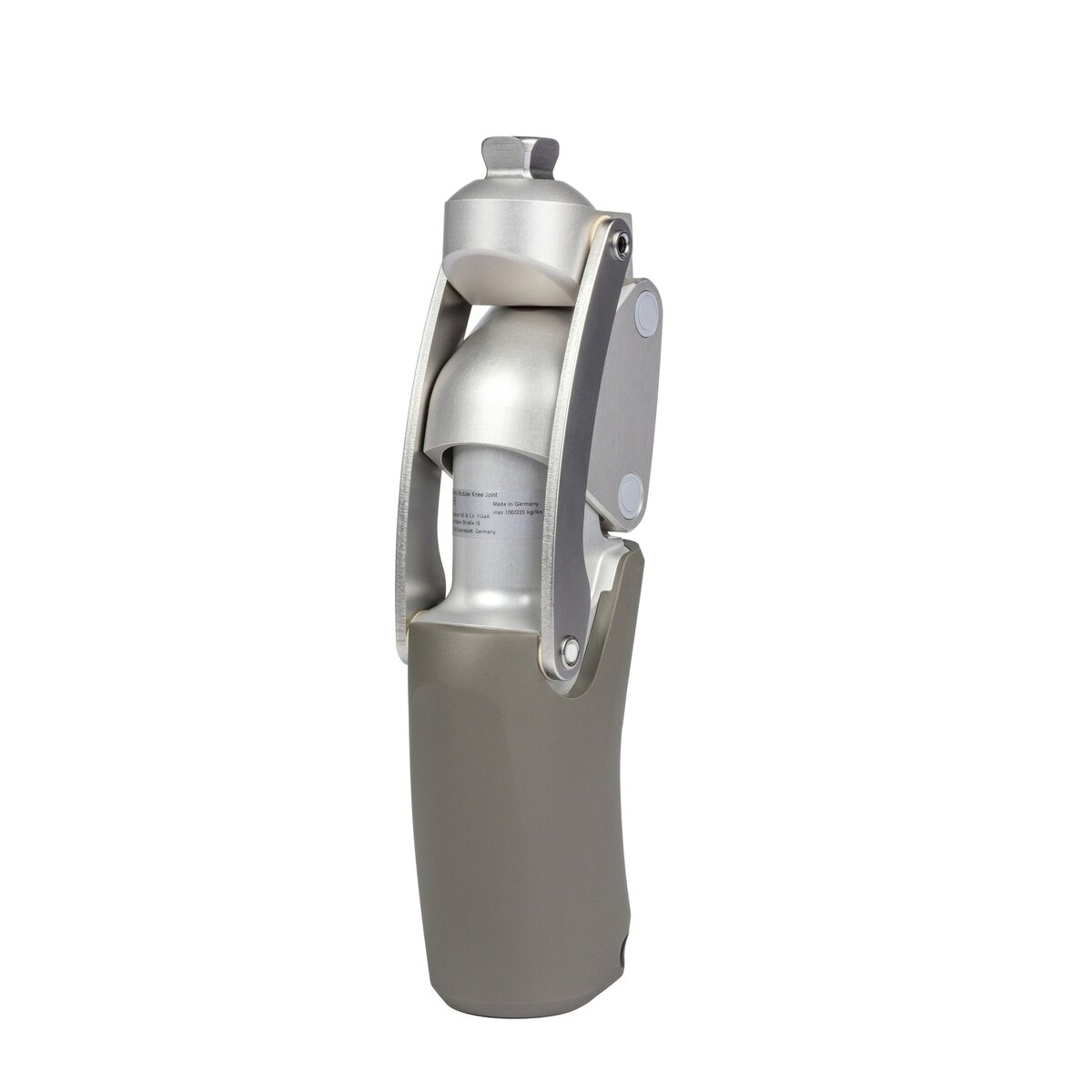

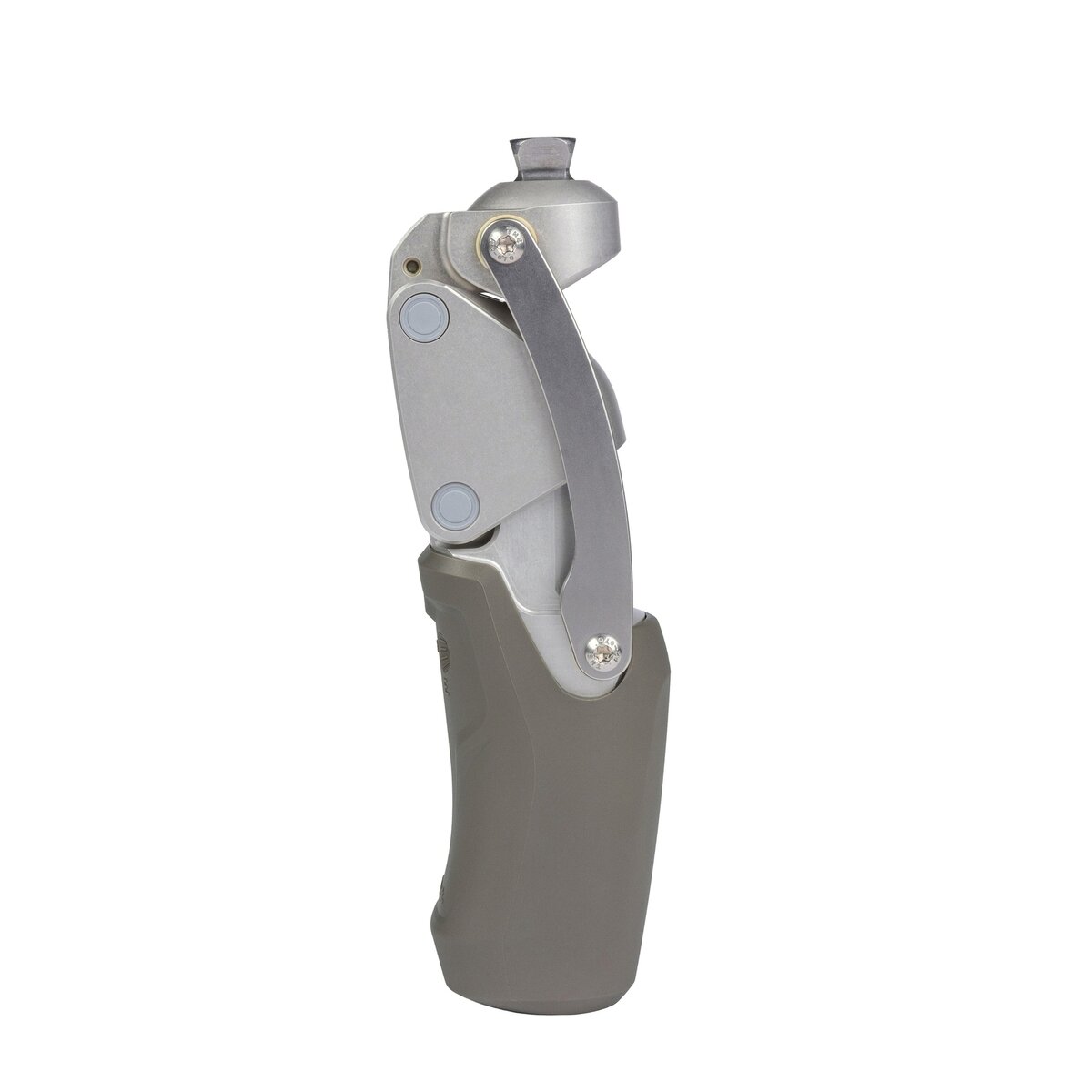

3R106 Pneumatic Knee Joint
By
ottobock
| Part # | Description |
|---|
Product Information
The 3R106 Pneumatic Knee Joint features a lightweight, compact design that offer flexibility in a variety of everyday situations. The design secures the knee joint during the stance phase and can provide greater ground clearance during the swing phase.
- Spring activated Extension Assist
- Flexion and extension damping of the pneumatic system can be adjusted separately
- Large knee flexion angle of 172°
Specifications
- Activity Level: K2, K3
- Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 730
- Maximum User Weight: 220lbs (100kg)
- Maximum Knee Flexion Angle: 172 Degrees
- Proximal Connection: Pyramid
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
Sold each.
Manufacturer Recommended HCPCS: L5840, L5850
